Jupiter Class 1 range of Microbiological Safety Cabinets for ultimate protection for the operator, with 100% ducted exhaust via Hepa filter or re-circulation using Hepa exhaust filter with option of activated carbon filters. Full microprocessor control with airflow measurement of both in-flow and exhaust airflows, visual and acoustic alarms for indication of unsafe conditions and programmable auto-start/auto-stop. The Jupiter offers the latest in low energy technology using EC fans, slim compact design and PIR sensors for automatic operation. Complimented by a range of support stands, options and accessories, the Jupiter range offers Class 1 protection with premier operator comfort.

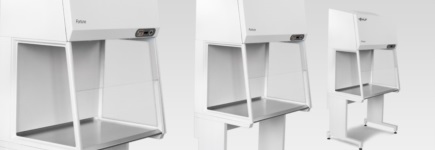

The Fortuna range of vertical laminar flow cabinets and work stations incorporating the latest in energy saving and laminator technology, HEPA filtration and with optional accessories that give optimal product protection. Microprocessor control with full visual and acoustic alarms and monitoring of air flow functions ensures optimal performance and safety characteristics at all times. The turbulent-free air flow gives a clean, sterile work chamber environment with complete protection of the procedures against microbiological intrusion or contamination. Low energy and noise free EC* fans and laminator technology ensure less vibration, heat transmission and a turbulent-free air flow to the chamber.. The Fortuna range of cabinets offer the ultimate in sample protection, operator comfort and optional fittings to provide the cabinet best suited for your laboratory and its procedures.

MARS Class 2 Microbiological Safety Cabinets

Mars class 2sets the standards in quality, design, and innovation that comes from a heritage of over 40years experience. Inventors of the first electrically operated, angled front screen in the early 1990’s, our engineering team are constantly pushing forward the frontiers of energy saving design concepts that others will eventually emulate. Mars Class 2 cabinets are the “science of silence”, at 54dB(A) you can hear yourself thinking! Quality with Quietness is the ScanLaf trade mark.
Maximum Operator Safety.
Optimal Operator Comfort.
Energy Saving Compact Design.
Microprocessor Control.
TUV-Nord Certification EN12469:2000 For 3 models

Orion Class 2 type B2 Cabinets

Orion Class 2 type B2 Cabinets Orion series of Class2 Safety Cabinets with 100% exhaust-B2 Type configuration, designed for microbiological work which may involve the use of inflammable solvents, acids or chemical constituents that would normally require a fume hood extraction. Operator, product and environmental protection with Orion Class 2 also ideally suited for animal handling and cage-changing procedures.

Minerva

Minerva Microbiological Safety Cabinets & Enclosures provide total protection for the operator, the sample and the environment. They give ultimate containment for hazardous materials in Hazard Group’s 1, 2, 3 & 4. Designed and constructed to EN 12469 requirements, the Minerva offers an ergonomically built, hermetically sealed enclosure for use when total containment and protection is required and necessary.

VacSafe Pumps

VacSafe 15 portable energy-saving vacuum/aspiration pumps with low pressure and high performance. Eco friendly operation- traps and contains all vapours and condensates
Maintenance Free with no oils or membranes
Corrosion resistance and strong cleanable design
Noiseless, portable, compact design
Capacity of 2x10 l/min or 1x 15 l/min with 30mbar @ 24°C & 7mbar @ 2°C
Low power consumption of 100 watts
Low operational costs and no expensive spares
Ideal applications are rotary evaporation, gel dryers, vacuum concentration, Elisa washers, vacuum desiccators, distillation, vacuum ovens, Buchner flask filtration, etc.

ScanSpeed MiniVac Evaporators

ScanSpeed MiniVac compact design for fast, environmental safe vacuum concentration of small samples in Eppendorf tubes, giving high sample through puts and recovery, especially on RNA/DNA samples. Simple manual or automatic operation with full programming of time, temperature and vacuum with storage of evaporation protocols for repetitive cycles and reproducible results. Available as a stand alone unit or as complete systems, ScanSpeed MiniVac Alpha orScanSpeed MiniVac Beta, with either VacSafe 15 or VacuuBrand MZ2.4 membrane pump.

ScanSpeed MaxiVac Evaporators

ScanSpeed MaxiVac is a compact, fast and environmental friendly vacuum concentrator, ideal for the concentration of both large and small volumes from 200 x 1.5ml Eppendorf tubes to 4x 250ml tubes, with range of rotors to suit all your sample requirements. Simple manual or automatic operation with full programming of time, temperature and vacuum and storage of complete evaporation protocols for repetitive evaporation cycles. Available as a stand alone unit or as complete systems, ScanSpeed MaxiVac Alpha or ScanSpeed Maxivac Beta, with high performance Coolsafe 110 cold traps offering combined, multi-function Freeze Drying options.

ScanVac CoolSafe Freeze Drying
The CoolSafe range of Freeze Dryers

The CoolSafe family of freeze dryers comprises of a large range of different size condensers and with a choice of either –55 °C, –95 °C, –100 °C or –110 °C temperatures. The sizes offered are from 4 litres up to 15 litres for bench-top models and 80 litres on Superior floor standing models. All the condensers are heavily insulated to save energy and give increased performance characteristics. The seamless, gasket-free construction ensures long life and maintenance-free usage, together with easy cleaning and fast de-icing. A vacuum valve between the condenser and the vacuum pump allows for separate cool down of the condenser and warm up of the vacuum pump giving an efficient start-up sequence. The vacuum valve will only open if the condenser temperature is low enough to capture vapours – otherwise it remains closed, thereby protecting the pump and the sample and not allowing premature operation.

CoolSafe Superior, floor standing

Complete Fully Automatic range of advanced Freeze Dryers that are the perfect choice for research, process development and small scale production. They offer the highest performance characteristics and technical features to meet the demands of today’s research and development laboratories.
Other features and Options include:
Condenser temperature of -55°C or -95°C
Basic model for attachment of manifolds and non-heated shelves Microprocessor control (PRO versions) with digital display of temperature, pressure
Bulk or Vial drying configurations (with stoppering device) Programming for temperature and pressure in 15 steps, offering incremental pre-freezing and pressure regulation during drying phases
PC connection & data capture, download, documentation
80 litre seamless stainless steel condenser with external cooling coil, lowest temperature -95°C, total ice capacity 10/20kg
Pt sensors for shelf temperature regulation
Vacuum valve for auto run and auto closure

Snowbird
ScanCool SnowBird…Ultra Freezer

ScanCool SnowBird…Ultra Freezer The under-bench/ personal, -90°C Ultra-Freezer, that offers complete sample security, convenience and reliability for your laboratory. The SnowBird can be located under or adjacent to the laboratory bench, offering the convenience of having your samples segregated from the general lab freezer, thus allowing fast retrieval and replacement, and ensured security of storage under your personal control.
Features Benefits
Internal stainless steel chamber with adjustable shelf
Epoxy powder coated cabinet
CFC/HCFC-Free refrigeration with 2 x 1/2hp compressors
Environmentally friendly, foamed in-place insulation
Door with magnetised seal
Vacuum release
The cascade refrigeration system incorporates twin Danfoss compressors with an operational noise level of less than 48dBa, with an energy saving condenser cooling fan, ensuring negligible noise intrusion into the laboratory. The SnowBird has an unsurpassed heritage of over 25years in refrigeration technology, supported by a 5year guarantee on the compressors.
ChillSafe
The name of the best in Danish Cooling, Cryo and Cooling baths and Circulators. The ChillSafe range offers cooling down to -30°C; -50°C and -90°C in bath sizes in 8 or 18 liter, with cooling capacities from 600 to 1200 watts.
A choice of Controller-Circulators (Safety Class 3), for external circulation with adjustable temperature setting, over-temperature protection, and pump capacity of 17 l/min at 350 mbar are available in 2 versions 2000 Series or 4000 Series where the “4000” can be connected to a computer a do controlled rate heating and cooling. A wide range of accessories which include Flex-trays and clamps for flasks and test tube racks, as well as Kits for external circulation. These Controller- Circulators and Accessories are compatible with and can retro-fit the ”Old” Heto models - contact us for advice

ChillSafe cooling & cryobaths
ChillSafe cooling & cryobaths ChillSafe & CryoSafe

a range of cooling and cryostatic baths and circulators with intelligent, soft touch digital PID controllers. Seamless stainless steel baths of 8 or 18 litres with 50mm thick insulation. SHC 2000 or SHC4000 controllers (standard on CryoSafe) with pump capacity of 17litres/min and circulation pressure of 350mbar.
The ChillSafe models temperature range -35°C to +150°C and the Cryosafe -50°C to +150°C or -90°C to +150°C. The ideal equipment for pre-freezing samples for Freeze Drying, controlling temperature of externally connected instruments i.e. Rotary evaporators, electron microscope etc.

Micro centrifuge range
Mini Centrifuge

Mini Centrifuge of compact small-foot print design for 12 x 1.5-2.0 mL micro tubes, with rapid acceleration and deceleration, pulse spin feature and supplied with fixed angle rotor with adaptors for 0.2ml microtubes.
Micro 1524

Micro 1524, high speed with 5 acceleration and deceleration ramping speeds for sensitive samples, 100 program memories, auto lid release and pulse spin feature. Fixed angle rotor for both micro and PCR tubes
Micro 1730R

Micro 1730R, high speed refrigerated micro with temperature range from -20°C to ambient and "fast cool" function for rapid cooling with cool down to +4°C in 5 min . Auto rotor identification and alarms for imbalance, over-heat and over speed. 100 program memory with 5 acceleration and deceleration ramps for sensitive samples. Fixed angle rotors for up to 30 1.5-2.0 mL micro tubes and PCR tube strips.

Low speed centrifuges
Model 406

Model 406, small low speed centrifuge with 10 program memory, auto alarms for imbalance, over-heat and over-speed. Automatic lid release and supplied with fixed angle rotor with sleeves for 6x15ml tubes.
Model 416

Model 416, low speed bench top centrifuge with “Soft Start/Stop” for gentle acceleration and deceleration and 10 program memory. Auto alarm system for imbalance, over-heat and over speed and automatic lid release. Choice of fixed angle for either 16x15ml tubes or swing-out rotors for 6x50ml tubes or 8x15mL tubes.

Multipurpose centrifuge range
Model 1236 Bench Top & 1236R Floor Standing

offering a wide range of both fixed angle and swing out rotors for micro tubes, test-tubes, bottles and micro titre plates. Automatic rotor identification with easy adjustment of radius correction and auto alarms for imbalance, over-speed and over-heat. Memory for 100 program runs. Pulse spin function, auto lid release are standard.
Model 1236R

has "Fast Cool" function with temperature setting from -20 °C to ambient with fast cool down to 4 °C in 5 min and lockable castors for easy location.
Model 1580 & 1580R Bench Tops

multi-purpose, high speed with or without refrigeration offering a choice of a wide range of fixed angle or swing-out rotors for micro tubes, test tubes, bottles and up to 80x15 mL tubes. Automatic rotor recognition and alarms for imbalance, over-heat and over-speed. 100 program memory and 5 acceleration and deceleration functions.
Model 1580R

has "Fast Cool" function with temperature setting from -20 °C to ambient with fast cool down to 4 °C in 5 min.

ScanConstruct

ScanConstruct Offer a wide programme of customised, bespoke, industrial laminar flow modules and walk-in clean-air containment areas, for the Food, Pharmaceutical, and Electronics Industries.
We provide a “design & build” solution to cater for specific clean-air requirements, together with installation, commissioning & validation services.
All projects undertaken are done in close liaison with the customer’s engineering/technical management teams at all stages, from original concept to final installation. Come and talk to us !! Our experience goes back over 30 years and we offer the best in Danish design and engineering.
